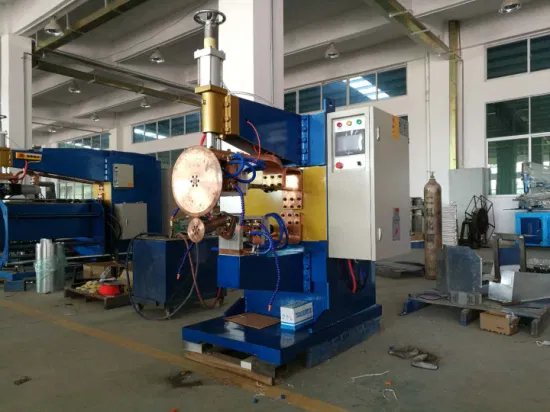

Engineered for HVAC component manufacturing, this machine provides high-speed, reliable seam welds on galvanized and stainless steel air ducts.
Features a versatile design allowing quick conversion between transversal and longitudinal seam welding.
Achieves a high tangential welding speed of 0.6 to 4 meters per minute, boosting production efficiency.
Ideal for welding materials used in hardware, automotive components, fuel tanks, and cans.
Equipped with a water-cooling system to ensure optimal performance and extend electrode life.
The dual-wheel driven system ensures consistent, high-quality seams across the entire workpiece.
Model: FN-150
Rated Capacity: 150 KVA
Rated Primary Voltage: 380V at 50/60 Hz
Maximum Short Current: 29000A
Welding Speed: 0.6-4 m/min
Required Cooling Water Flow: 30 L/min
